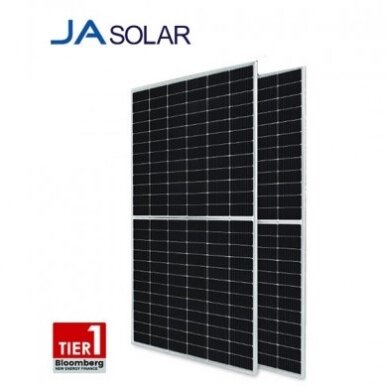

  •   JA Solar Panel, 550Wp, Bifacial, Mono, Perc

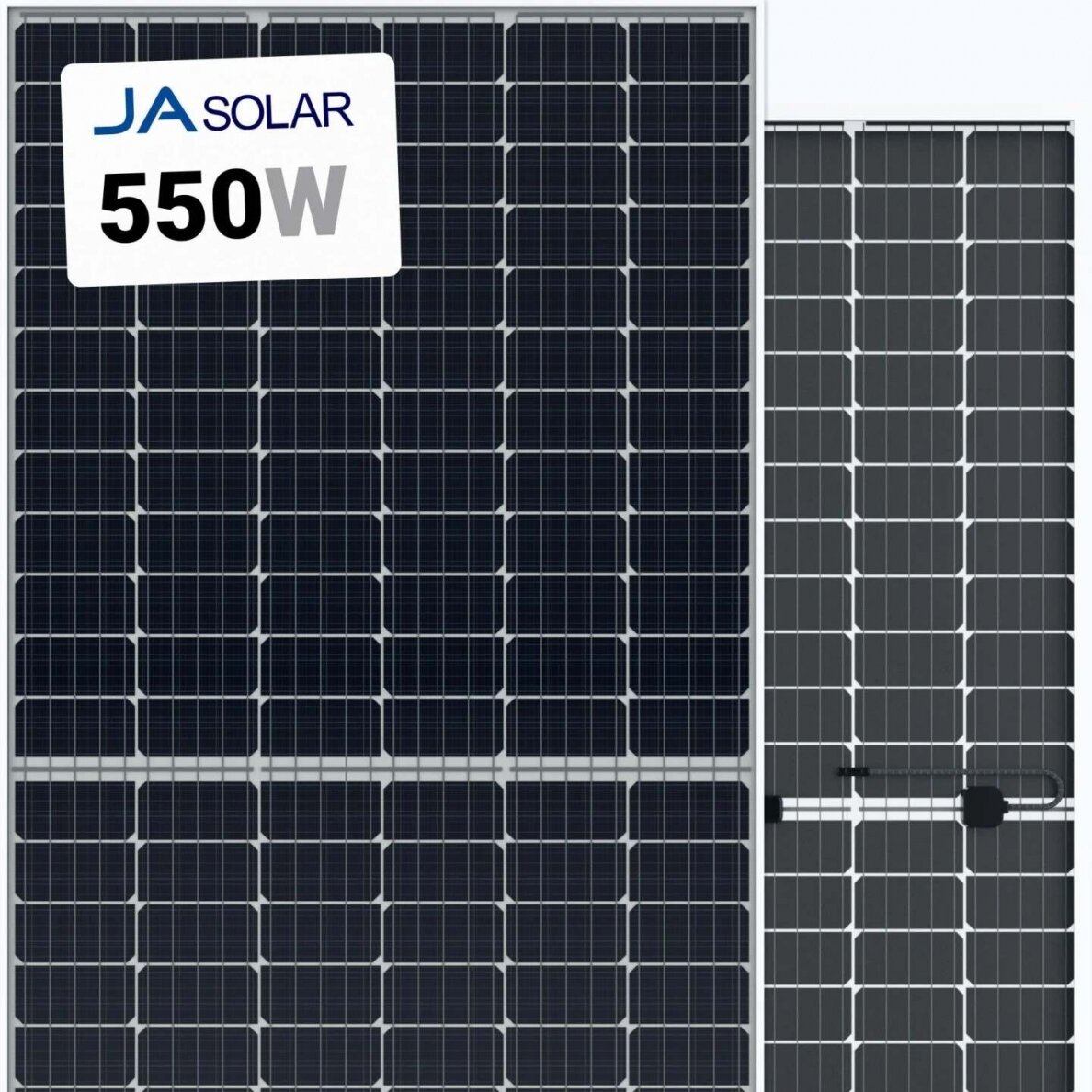

      JA Solar Panel, 550Wp, Bifacial, Mono, Perc 1

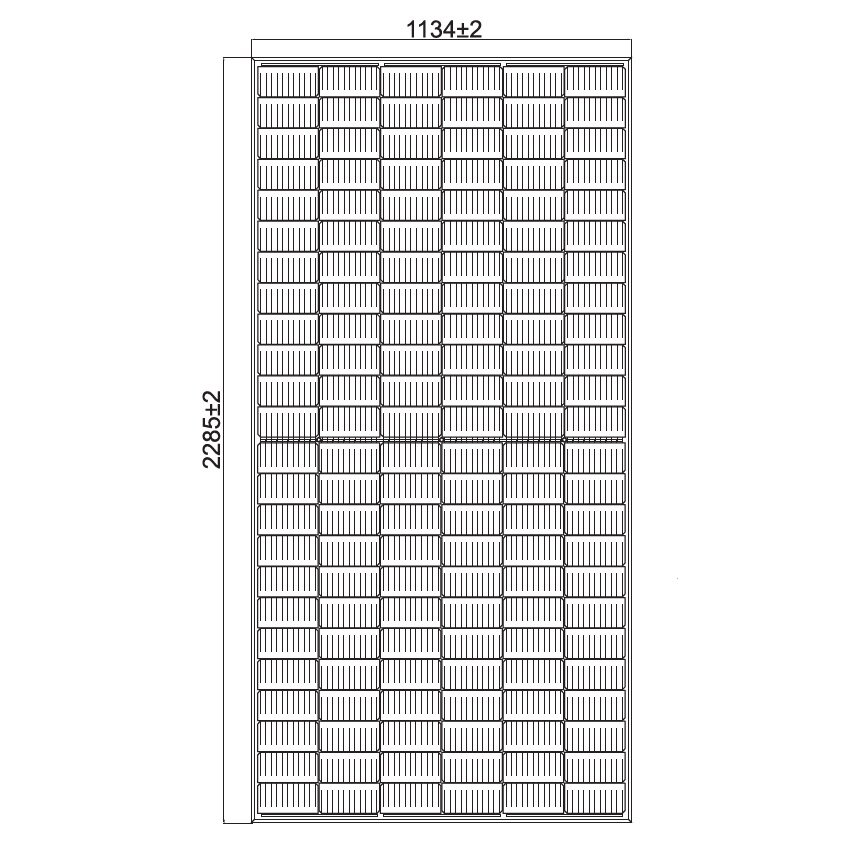

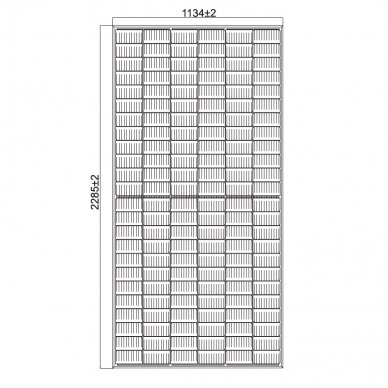

      JA Solar Panel, 550Wp, Bifacial, Mono, Perc 2

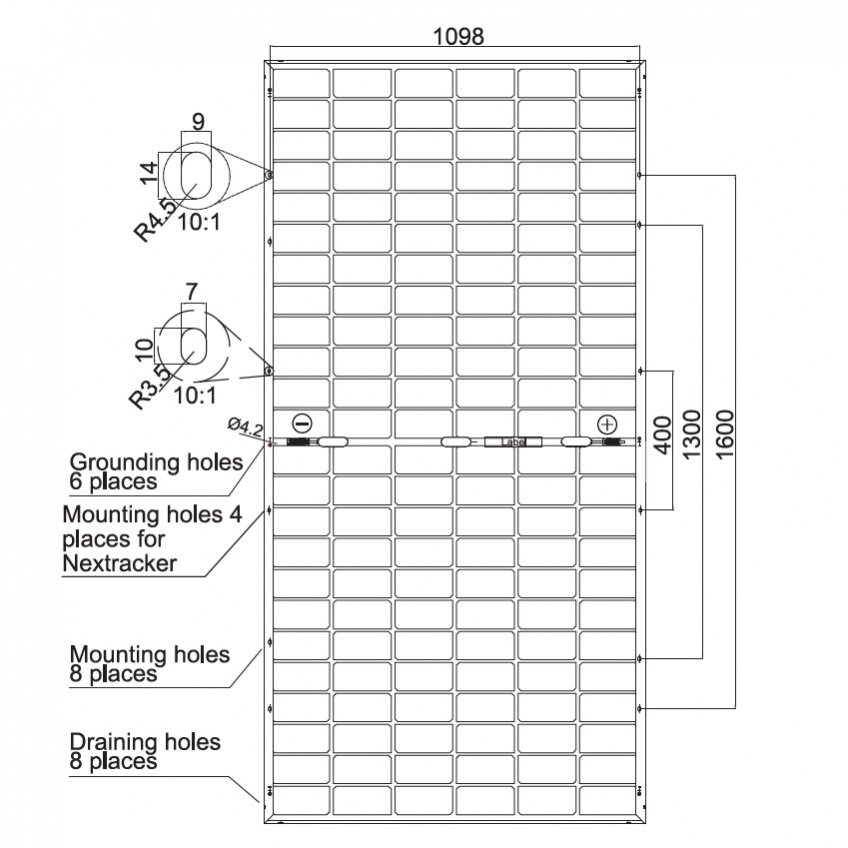

      JA Solar Panel, 550Wp, Bifacial, Mono, Perc 3

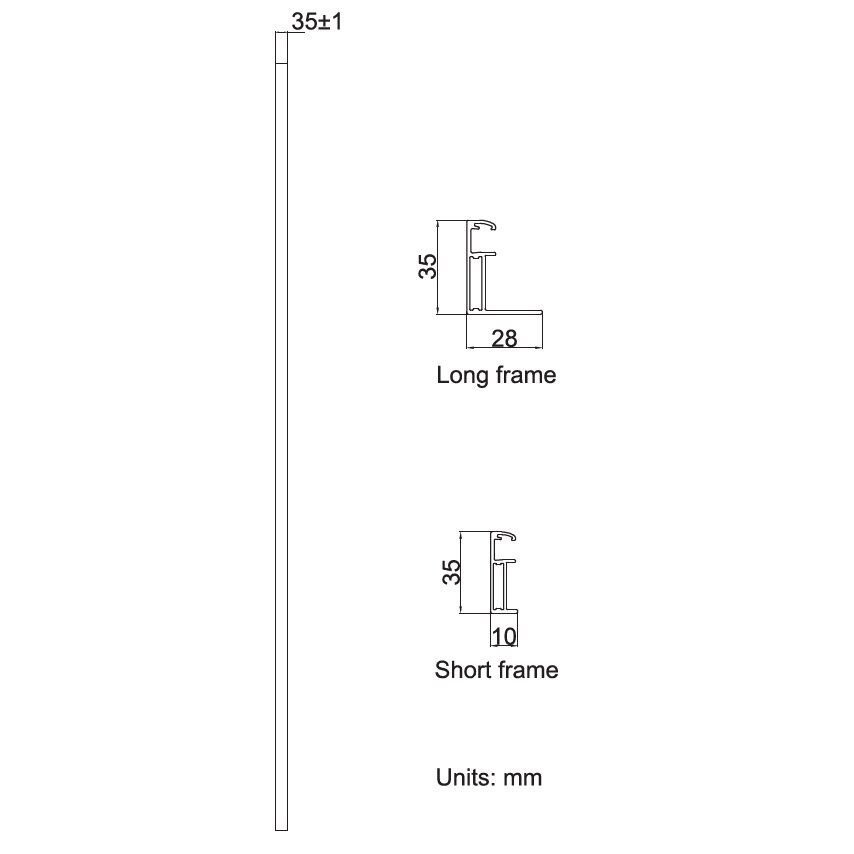

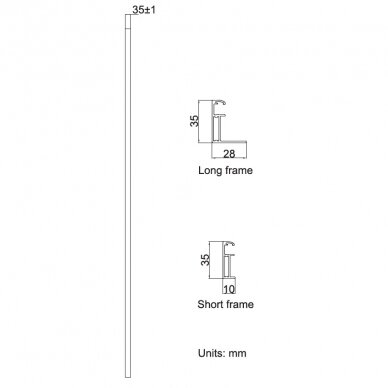

      JA Solar Panel, 550Wp, Bifacial, Mono, Perc 4

    JA Solar Panel, 550Wp, Bifacial, Mono, Perc

    Code: 9417
    Inquire about this item
    94.89 € VAT incl. pcs
    ( 78.42 € VAT excl. )

    Before buying/ordering:
    Free delivery when ordering from 1 pallet (36 pcs). If you order a smaller quantity, the transport price is 60 EUR. Contact for more specific information.

  • In Vilnius warehouse
    Not present
    Manufacturer
    JA Solar Technology
    Brand
    JA Solar
    Product code
    JAM72D30 550
    Maximum Power, Pmax, W
    550
    Maximum Power Voltage, Vmp, V
    41.96
    Maximum Power Current, Imp, A
    13.11
    Open Circuit Voltage, Voc, V
    49.9
    Short Circuit Current, Isc, A
    14
    Module Efficiency, %
    21.2
    Power Output Tolerance, W
    0 / +5
    Maximum System Voltage, V
    DC1500
    Max Series Fuse Rating, A
    30
    Nominal Operating Cell Temperature, NOCT, °C
    45±2
    Temperature Coefficient of Isc, %/°C
    +0.045
    Temperature Coefficient of Voc, %/°C
    -0.275
    Temperature Coefficient of Pmax, %/°C
    -0.35
    Number of Cells
    144 (6x24)
    Glass thickness, mm
    2
    Frame Material
    Anodized aluminium
    Frame Color
    Silver
    Backsheet color
    Transparent
    Junction Box Protection class
    IP68
    Cable thickness, mm²
    4
    Cable length, mm
    350
    Connector type
    MC4
    Number of diodes
    3
    Wind Load, Pa
    2400
    Snow Load, Pa
    5400
    Test conditions
    Air Mass (AM)=1.5, Irradiance(E)=1000W/m², Module Temperature(Tc)=25°C
    Items per Pallet
    Not specified
    Size of Pallet, mm
    Not specified
    Weight, kg
    31.6
    Warranty, Year
    12 Product / 30 up to 85% Power
