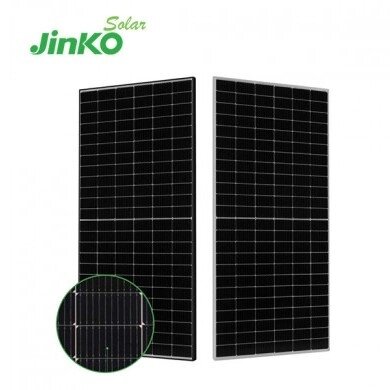

Name: Jinko Solar, 550Wp, P-Тype, Tiger Pro, MONO-FACIAL
Brand: Jinko Solar
SKU: 9702
Price: 90.36 EUR
Availability: OutOfStock

Atsiprašome, prekės, kurios ieškote, rasti nepavyko. Kitos šios kategorijos prekės yra pateikiamos žemiau.

Jinko Solar, 550Wp, P-Тype, Tiger Pro, MONO-FACIAL

Code: 9702

Inquire about this item

Add to compareRemove from comparison Compare goods (0)

Add to wishlist

90.36 € VAT incl. pcs
( 74.68 € VAT excl. )

Out of stock.
Contact us Inform when we have the item on stock

Before buying/ordering:
Free delivery when ordering from 1 pallet (~30 pcs). If you order a smaller quantity, the transport price is 60 EUR. Contact for more specific information.
- Attributes
In Vilnius warehouse

Not present

Manufacturer

Jinko Solar

Brand

Jinko Solar

Product code

JKM550M-72HL4

Maximum Power, Pmax, W

550

Maximum Power Voltage, Vmp, V

40.9

Maximum Power Current, Imp, A

13.45

Open Circuit Voltage, Voc, V

49.62

Short Circuit Current, Isc, A

14.03

Module Efficiency, %

21.29

Power Output Tolerance, W

0 / +3

Maximum System Voltage, V

DC1500

Max Series Fuse Rating, A

25

Nominal Operating Cell Temperature, NOCT, °C

45±2

Temperature Coefficient of Isc, %/°C

+0.048

Temperature Coefficient of Voc, %/°C

-0.28

Temperature Coefficient of Pmax, %/°C

-0.35

Number of Cells

144 (6x24)

Glass thickness, mm

3.2

Frame Material

Anodized aluminium

Frame Color

Silver

Backsheet color

White

Junction Box Protection class

IP68

Cable thickness, mm²

4

Cable length, mm

400

Connector type

MC4

Number of diodes

Not specified

Wind Load, Pa

Not specified

Snow Load, Pa

Not specified

Test conditions

Air Mass (AM)=1.5, Irradiance(E)=1000W/m², Module Temperature(Tc)=25°C

Ambient temperature, °C

-40 / +85

Items per Pallet

31

Size of Pallet, mm

Not specified

Weight, kg

28

Warranty, Year

15 Product / 30 up to 85% Power
