  • Icon in stock   LED Constant Current Controller, 12-36V, 10A/Ch, 3 Channels
    Icon in stock   LED Constant Current Controller, 12-36V, 10A/Ch, 3 Channels 1

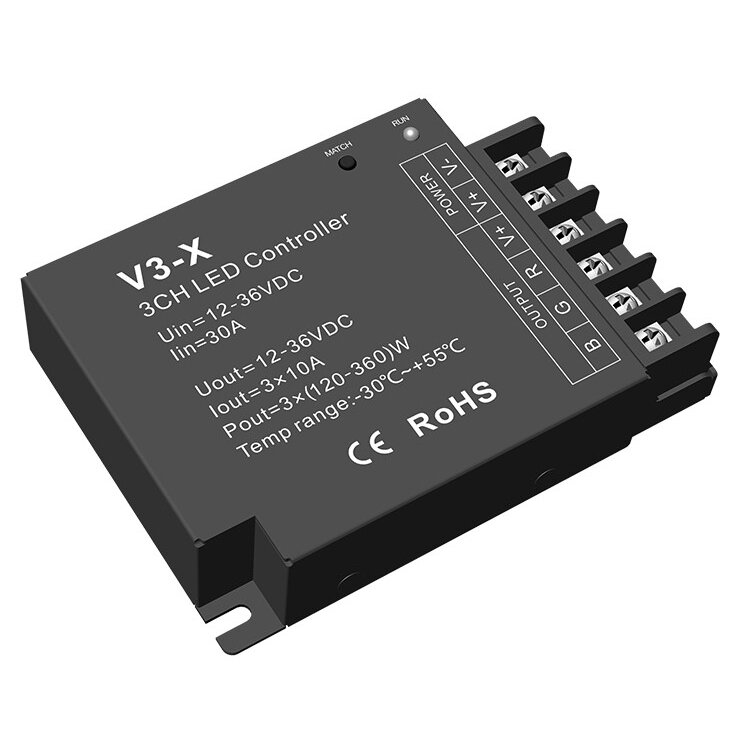

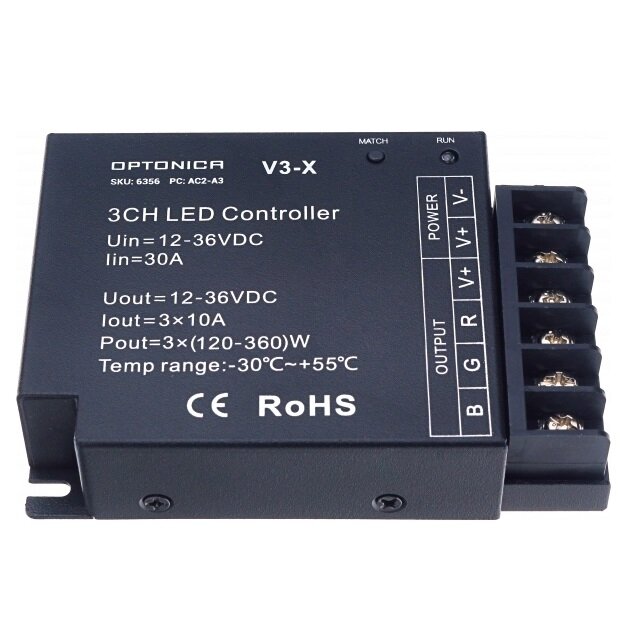

    LED Constant Current Controller, 12-36V, 10A/Ch, 3 Channels

    Code: 6356
    Inquire about this item
    43.17 € VAT incl. pcs
    ( 35.68 € VAT excl. )
    In stock.
    1 pcs - Vilniaus warehouse (delivery 2 w.d.)
    107 pcs - European warehouse (delivery 7 w.d.)
    Add to cart
  • In Vilnius warehouse
    Present
    Manufacturer
    OptonicaLED
    Brand
    Optonica
    Product code
    AC2-A3
    Power, W
    3x(120-360)
    Energy consumption, kWh/1000h
    1080
    Input voltage, V
    DC12-36
    Supply current, A
    30
    Power grid frequency, Hz
    Irrelevant
    Output voltage, V
    3x(DC12-36)
    Output current, A
    3x10
    Power factor
    Irrelevant
    Output type
    Constant current
    Output Connection Mode
    Common anode (+)
    Number of Channels
    3
    Dimmable
    Yes
    Dimming Control Type
    PWM
    Number of Dimming Levels
    Not specified
    Range of Dimming, %
    Not specified
    Wireless Control
    No
    Wireless Control Type
    Irrelevant
    Wireless Control Distance, m
    Irrelevant
    LED strip type
    RGB
    Life span, h
    Not specified
    On/Off cycles
    Not specified
    Product material
    Aluminium
    Body color
    Black
    Ingress protection
    IP20
    Ambient temperature, °C
    -30 / +55
    Items per box
    50
    Items per pack
    1
    Size of box, mm
    Not specified
    Size of package, mm
    Not specified
    Gross weight, g
    270
    Net weight, g
    244
    Warranty, Year
    2
