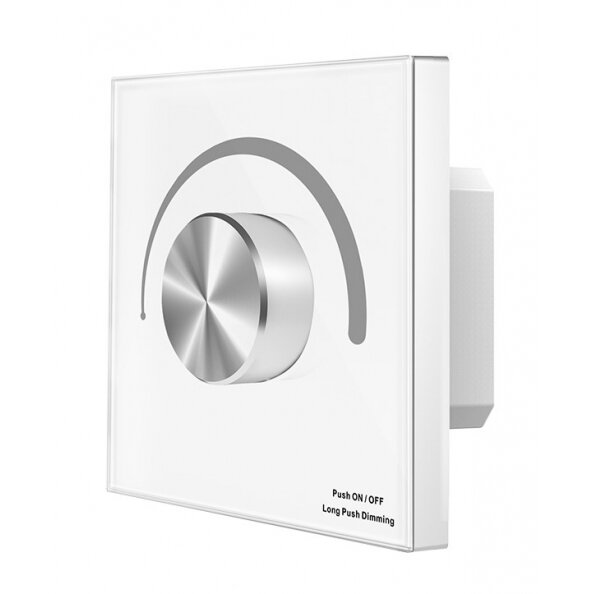

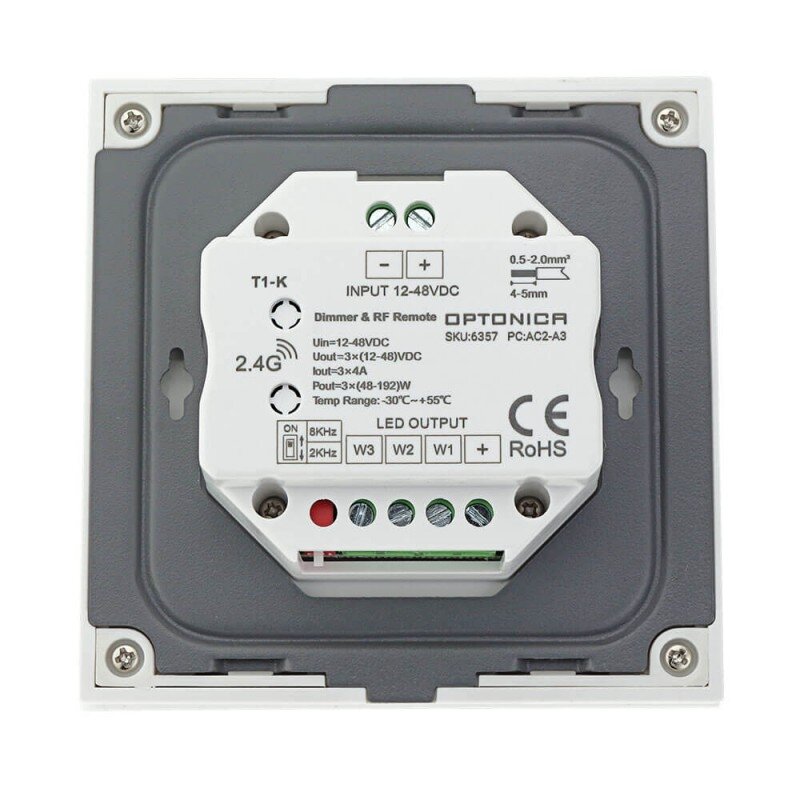

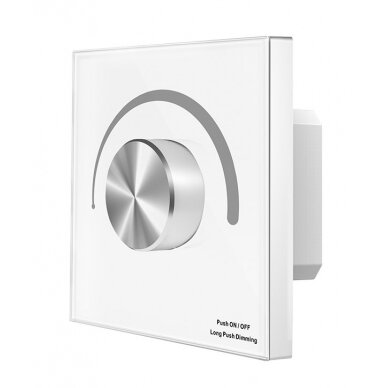

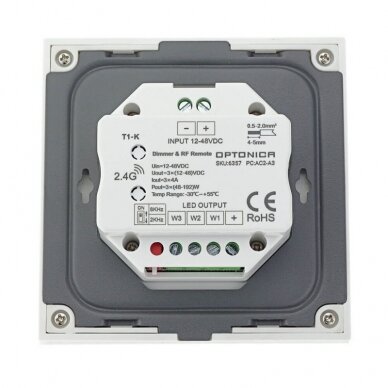

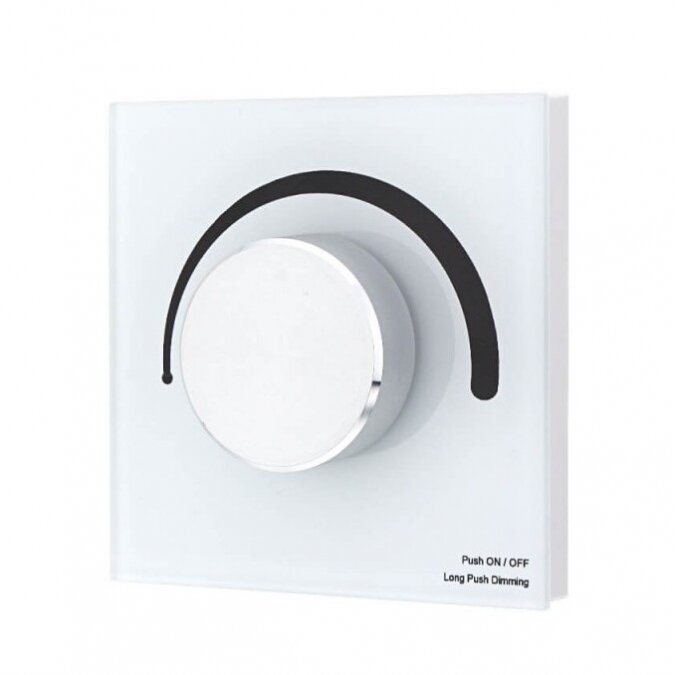

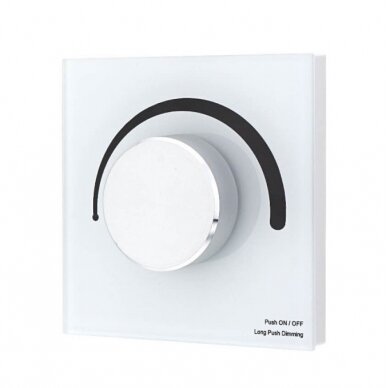

  •   LED Constant Voltage Brightness Controller, 24V, 4A/Ch, 3 Channels
      LED Constant Voltage Brightness Controller, 24V, 4A/Ch, 3 Channels 1
      LED Constant Voltage Brightness Controller, 24V, 4A/Ch, 3 Channels 2

    LED Constant Voltage Brightness Controller, 24V, 4A/Ch, 3 Channels

    Code: 6357
    Inquire about this item
    63.22 € VAT incl. pcs
    ( 52.25 € VAT excl. )
    In stock.
    0 pcs - Vilniaus warehouse (delivery 2 w.d.)
    83 pcs - European warehouse (delivery 7 w.d.)
    Add to cart
  • In Vilnius warehouse
    Not present
    Manufacturer
    OptonicaLED
    Brand
    Optonica
    Product code
    AC2-A3
    Power, W
    3x(48-192)
    Energy consumption, kWh/1000h
    576
    Input voltage, V
    DC12-48
    Supply current, A
    12.5
    Power grid frequency, Hz
    Irrelevant
    Output voltage, V
    3x(DC12-48)
    Output current, A
    3x4
    Power factor
    Irrelevant
    Output type
    Constant voltage
    Output Connection Mode
    Common anode (+)
    Number of Channels
    3
    Dimmable
    Yes
    Dimming Control Type
    PWM
    Number of Dimming Levels
    Not specified
    Range of Dimming, %
    Not specified
    Wireless Control
    Yes
    Wireless Control Type
    RF 2.4GHz (WiFi)
    Wireless Control Distance, m
    Not specified
    LED strip type
    Single color
    Life span, h
    Not specified
    On/Off cycles
    Not specified
    Product material
    Plastic
    Body color
    White
    Ingress protection
    IP20
    Ambient temperature, °C
    -30 / +55
    Items per box
    50
    Items per pack
    1
    Size of box, mm
    Not specified
    Size of package, mm
    Not specified
    Gross weight, g
    230
    Net weight, g
    173
    Warranty, Year
    2
