  •   LED Constant Voltage Controller, 12-36V, 5A/Ch, 4 Channels, Waterproof Remote Control

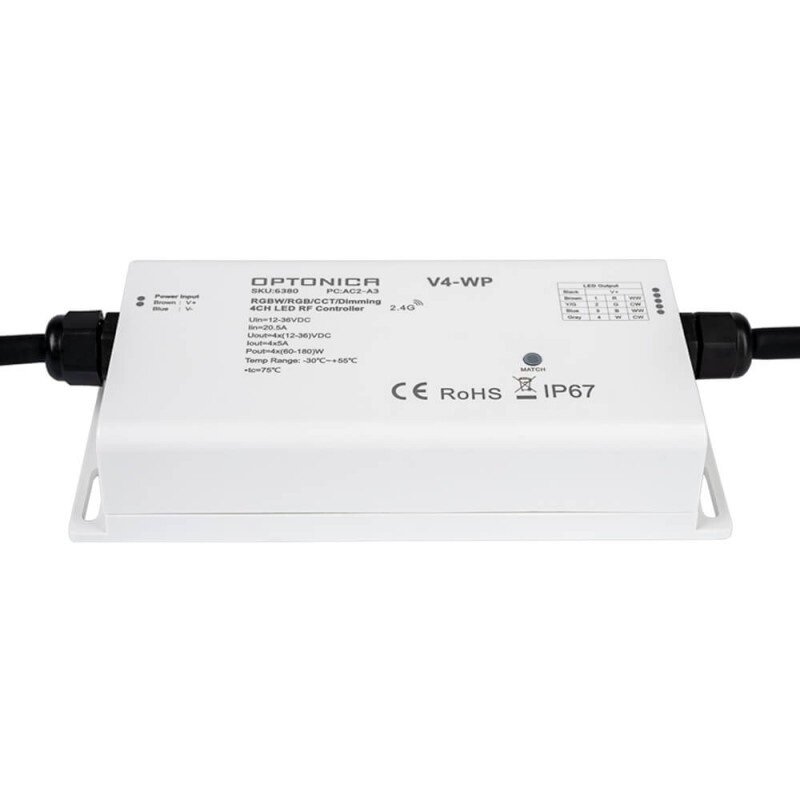

      LED Constant Voltage Controller, 12-36V, 5A/Ch, 4 Channels, Waterproof Remote Control 1

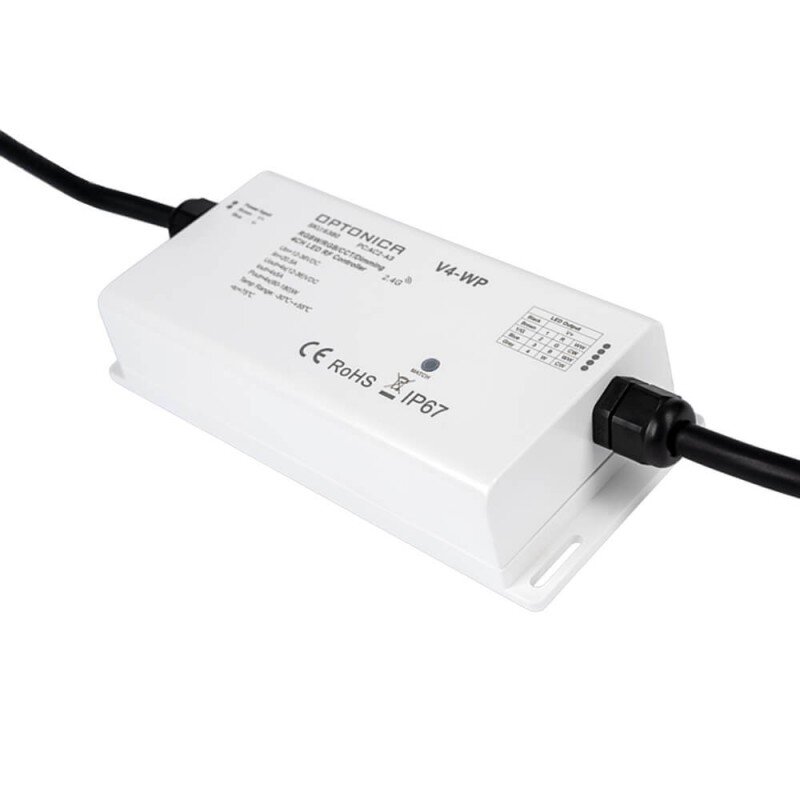

      LED Constant Voltage Controller, 12-36V, 5A/Ch, 4 Channels, Waterproof Remote Control 2

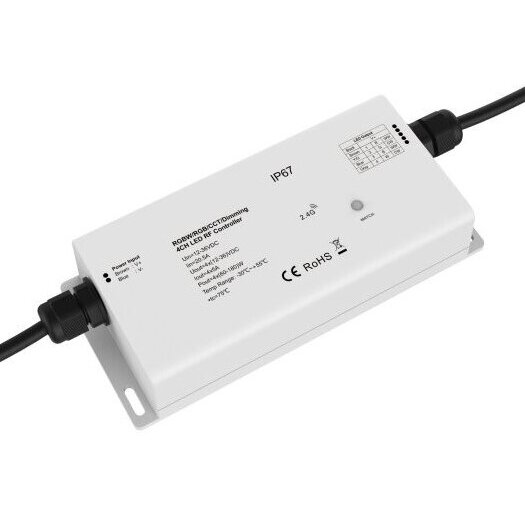

    LED Constant Voltage Controller, 12-36V, 5A/Ch, 4 Channels, Waterproof Remote Control

    Code: 6380
    Inquire about this item
    84.10 € VAT incl. pcs
    ( 69.50 € VAT excl. )
    In stock.
    0 pcs - Vilniaus warehouse (delivery 2 w.d.)
    111 pcs - European warehouse (delivery 7 w.d.)
    Add to cart
  • In Vilnius warehouse
    Not present
    Manufacturer
    OptonicaLED
    Brand
    Optonica
    Product code
    AC2-A3
    Power, W
    4x(60-180)
    Energy consumption, kWh/1000h
    720
    Input voltage, V
    DC12-36
    Supply current, A
    20.5
    Power grid frequency, Hz
    Irrelevant
    Output voltage, V
    4x(DC12-36)
    Output current, A
    4x5
    Power factor
    Irrelevant
    Output type
    Constant voltage
    Output Connection Mode
    Common anode (+)
    Number of Channels
    4
    Dimmable
    Yes
    Dimming Control Type
    PWM
    Number of Dimming Levels
    Not specified
    Range of Dimming, %
    0-100
    Wireless Control
    Yes
    Wireless Control Type
    RF 2.4GHz (WiFi)
    Wireless Control Distance, m
    30
    LED strip type
    RGBW, RGB, WW, CCT, Single color
    Life span, h
    Not specified
    On/Off cycles
    Not specified
    Product material
    Plastic
    Body color
    White
    Ingress protection
    IP67
    Ambient temperature, °C
    -30 / +55
    Items per box
    Not specified
    Items per pack
    1
    Size of box, mm
    Not specified
    Size of package, mm
    Not specified
    Gross weight, g
    360
    Net weight, g
    300
    Warranty, Year
    2
