  •   LED Constant Voltage Power Repeater, 12-24V, 5A/Ch, 5 Channels

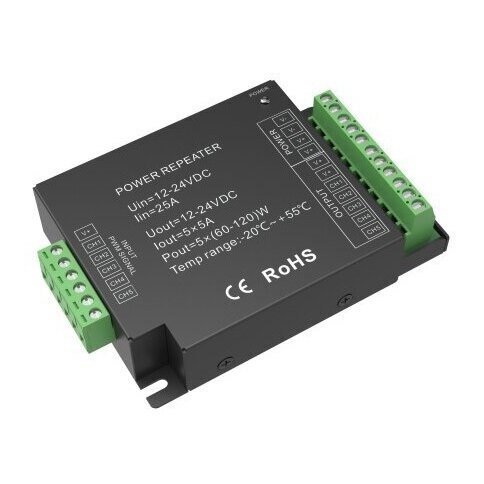

    LED Constant Voltage Power Repeater, 12-24V, 5A/Ch, 5 Channels

    Code: 6396
    Inquire about this item
    60.17 € VAT incl. pcs
    ( 49.73 € VAT excl. )
    In stock.
    0 pcs - Vilniaus warehouse (delivery 2 w.d.)
    122 pcs - European warehouse (delivery 7 w.d.)
    Add to cart
  • In Vilnius warehouse
    Not present
    Manufacturer
    OptonicaLED
    Brand
    Optonica
    Product code
    AC2-A3
    Power, W
    5x(60-120)
    Energy consumption, kWh/1000h
    600
    Input voltage, V
    DC12-24
    Supply current, A
    25
    Power grid frequency, Hz
    Irrelevant
    Output voltage, V
    5x(DC12-24)
    Output current, A
    5x5
    Power factor
    Irrelevant
    Output type
    Constant voltage
    Output Connection Mode
    Common anode (+)
    Number of Channels
    5
    Dimmable
    Yes
    Dimming Control Type
    PWM
    Wireless Control
    No
    Wireless Control Type
    Irrelevant
    Life span, h
    Not specified
    On/Off cycles
    Not specified
    Product material
    Metal
    Body color
    Black
    Ingress protection
    IP20
    Ambient temperature, °C
    -20 / +55
    Items per box
    Not specified
    Items per pack
    1
    Size of box, mm
    Not specified
    Size of package, mm
    Not specified
    Gross weight, g
    269
    Net weight, g
    249
    Warranty, Year
    2
