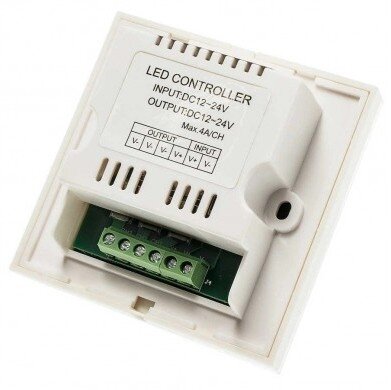

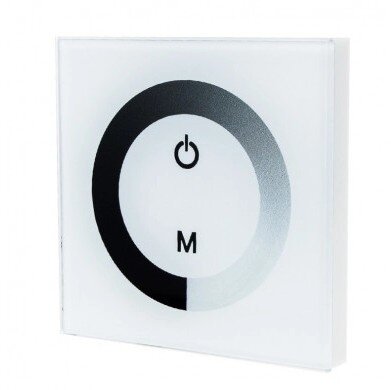

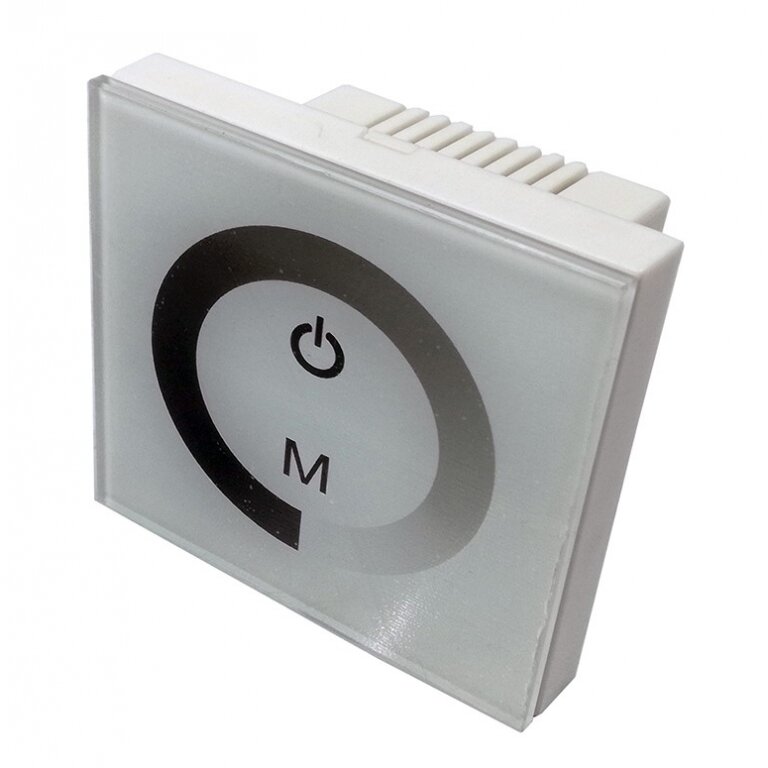

  •   LED Sensor Dimmer, 12V, 144W, Wall Mountable, White
      LED Sensor Dimmer, 12V, 144W, Wall Mountable, White 1
      LED Sensor Dimmer, 12V, 144W, Wall Mountable, White 2

    LED Sensor Dimmer, 12V, 144W, Wall Mountable, White

    Code: 6320
    Inquire about this item
    29.62 € VAT incl. pcs
    ( 24.48 € VAT excl. )
    In stock.
    0 pcs - Vilniaus warehouse (delivery 2 w.d.)
    184 pcs - European warehouse (delivery 7 w.d.)
    Add to cart
  • In Vilnius warehouse
    Not present
    Manufacturer
    OptonicaLED
    Brand
    Optonica
    Product code
    AC2-A2
    Power, W
    144-288
    Energy consumption, kWh/1000h
    288
    Input voltage, V
    DC12-24
    Supply current, A
    12
    Power grid frequency, Hz
    Irrelevant
    Output voltage, V
    3x(DC12-24)
    Output current, A
    3x4
    Power factor
    Irrelevant
    Output type
    Not specified
    Output Connection Mode
    Common anode (+)
    Number of Channels
    3
    Dimmable
    Yes
    Dimming Control Type
    PWM
    Wireless Control
    No
    Wireless Control Type
    Irrelevant
    Life span, h
    25000
    On/Off cycles
    25000
    Product material
    Plastic
    Body color
    White
    Ingress protection
    IP20
    Ambient temperature, °C
    -20 / +40
    Items per box
    50
    Items per pack
    1
    Size of box, mm
    Not specified
    Size of package, mm
    115x110x55
    Gross weight, g
    176
    Net weight, g
    117
    Warranty, Year
    2
