  • Icon in stock   -14%Osda Monocrystalline Solar PV Module, 620Wp, Bi-Facial, N-Type, Topcon

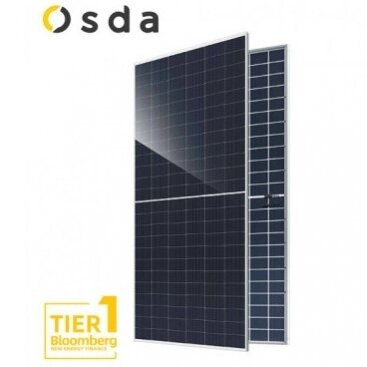

    Osda Monocrystalline Solar PV Module, 620Wp, Bi-Facial, N-Type, Topcon

    Code: 9408
    Inquire about this item
    114.09 € VAT incl. pcs
    ( 94.29 € VAT excl. )
    132.43 € You save 18.34 €
    In stock.
    2 pcs - Vilniaus warehouse (delivery 2 w.d.)
    1589 pcs - European warehouse (delivery 7 w.d.)
    Add to cart

    Before buying/ordering:
    Free delivery when ordering from 1 pallet (31 pcs). If you order a smaller quantity, the transport price is 60 EUR. Contact for more specific information.

  • In Vilnius warehouse
    Present
    Manufacturer
    OSDASolar
    Brand
    OSDA
    Product code
    ODA-132MHDRz
    Maximum Power, Pmax, W
    620
    Maximum Power Voltage, Vmp, V
    40.74
    Maximum Power Current, Imp, A
    15.22
    Open Circuit Voltage, Voc, V
    49.08
    Short Circuit Current, Isc, A
    16.08
    Module Efficiency, %
    23
    Power Output Tolerance, W
    0 / +3
    Maximum System Voltage, V
    DC1500
    Max Series Fuse Rating, A
    35
    Nominal Operating Cell Temperature, NOCT, °C
    45±2
    Temperature Coefficient of Isc, %/°C
    +0.045
    Temperature Coefficient of Voc, %/°C
    -0.25
    Temperature Coefficient of Pmax, %/°C
    -0.29
    Number of Cells
    132 (12x11)
    Glass thickness, mm
    2
    Frame Material
    Anodized aluminium
    Frame Color
    Silver
    Backsheet color
    Transparent
    Junction Box Protection class
    IP68
    Cable thickness, mm²
    4
    Cable length, mm
    350
    Connector type
    MC4
    Number of diodes
    3
    Wind Load, Pa
    2400
    Snow Load, Pa
    5400
    Test conditions
    Air Mass (AM)=1.5, Irradiance(E)=1000W/m², Module Temperature(Tc)=25°C
    Items per Pallet
    Not specified
    Size of Pallet, mm
    Not specified
    Weight, kg
    32.4
    Warranty, Year
    15 Product / 30 up to 87% Power
