  • Icon in stock   -17%Risen Monocrystalline Solar Panel, N-Type, Bi-Facial, Hyper-ion, Topcon, HDJ, HJT, 715Wp

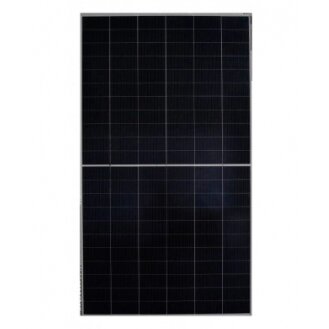

    Risen Monocrystalline Solar Panel, N-Type, Bi-Facial, Hyper-ion, Topcon, HDJ, HJT, 715Wp

    Code: 9415
    Inquire about this item
    131.58 € VAT incl. pcs
    ( 108.74 € VAT excl. )
    158.59 € You save 27.01 €
    In stock.
    14 pcs - Vilniaus warehouse (delivery 2 w.d.)
    5 pcs - European warehouse (delivery 7 w.d.)
    Add to cart

    Before buying/ordering:
    Free delivery when ordering from 1 pallet (33 pcs). If you order a smaller quantity, the transport price is 60 EUR. Contact for more specific information.

  • In Vilnius warehouse
    Present
    Manufacturer
    RisenEnergy
    Brand
    Risen
    Product code
    RSM132-8-690-715BHDG
    Maximum Power, Pmax, W
    715
    Maximum Power Voltage, Vmp, V
    42
    Maximum Power Current, Imp, A
    17.05
    Open Circuit Voltage, Voc, V
    50.09
    Short Circuit Current, Isc, A
    18.1
    Module Efficiency, %
    23
    Power Output Tolerance, W
    0 / +3
    Maximum System Voltage, V
    DC1500
    Max Series Fuse Rating, A
    35
    Nominal Operating Cell Temperature, NOCT, °C
    43±2
    Temperature Coefficient of Isc, %/°C
    +0.047
    Temperature Coefficient of Voc, %/°C
    -0.22
    Temperature Coefficient of Pmax, %/°C
    -0.24
    Number of Cells
    132 (6x22)
    Glass thickness, mm
    Not specified
    Frame Material
    Anodized aluminium
    Frame Color
    Silver
    Backsheet color
    Transparent
    Junction Box Protection class
    IP68
    Cable thickness, mm²
    4
    Cable length, mm
    350
    Connector type
    Risen Twinsel PV-SY02
    Number of diodes
    3
    Wind Load, Pa
    Not specified
    Snow Load, Pa
    Not specified
    Test conditions
    Air Mass (AM)=1.5, Irradiance(E)=1000W/m², Module Temperature(Tc)=25°C
    Items per Pallet
    33
    Size of Pallet, mm
    1320x1125x2520
    Weight, kg
    37.5
    Warranty, Year
    15 Product / 30 up to 90% Power
