  •   -4%SunPro Monocrystalline Solar PV Module, 450Wp, Bi-Facial, N-Type, Topcon, Black Frame

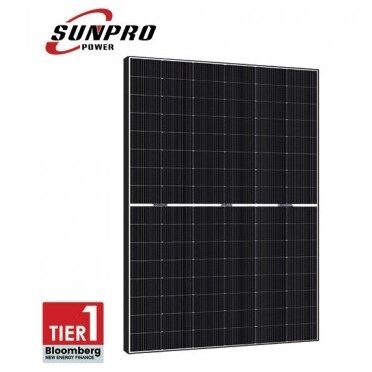

    SunPro Monocrystalline Solar PV Module, 450Wp, Bi-Facial, N-Type, Topcon, Black Frame

    Code: 9416
    Inquire about this item
    92.42 € VAT incl. pcs
    ( 76.38 € VAT excl. )
    96.12 € You save 3.70 €

    Before buying/ordering:
    Free delivery when ordering from 1 pallet (36 pcs). If you order a smaller quantity, the transport price is 60 EUR. Contact for more specific information.

  • In Vilnius warehouse
    Not present
    Manufacturer
    SunPro Power
    Brand
    SunPro
    Product code
    SPDG450-N96R12
    Maximum Power, Pmax, W
    450
    Maximum Power Voltage, Vmp, V
    29.93
    Maximum Power Current, Imp, A
    15.04
    Open Circuit Voltage, Voc, V
    35.8
    Short Circuit Current, Isc, A
    15.9
    Module Efficiency, %
    22.52
    Power Output Tolerance, W
    0 / +5
    Maximum System Voltage, V
    DC1500
    Max Series Fuse Rating, A
    30
    Nominal Operating Cell Temperature, NOCT, °C
    45±2
    Temperature Coefficient of Isc, %/°C
    +0.045
    Temperature Coefficient of Voc, %/°C
    -0.25
    Temperature Coefficient of Pmax, %/°C
    -0.3
    Number of Cells
    96
    Glass thickness, mm
    2
    Frame Material
    Anodized aluminium
    Frame Color
    Black
    Backsheet color
    Transparent
    Junction Box Protection class
    IP68
    Cable thickness, mm²
    4
    Cable length, mm
    1100
    Connector type
    MC4
    Number of diodes
    Not specified
    Wind Load, Pa
    2400
    Snow Load, Pa
    5400
    Test conditions
    Air Mass (AM)=1.5, Irradiance(E)=1000W/m², Module Temperature(Tc)=25°C
    Items per Pallet
    36
    Size of Pallet, mm
    Not specified
    Weight, kg
    23.8
    Warranty, Year
    25 Product / 30 up to 87% Power
